Overview
The Schwarzbeck RS 0460 vertically polarised symmetrical biconical antenna 0.4 - 6 GHz omnidirectional in the H-plane.
| Schwarzbeck RS 0460 Specifications | |
| Vertical polarised microwave biconical broadband antenna with omnidirectional H-plane pattern. | |
| Frequency range | 0.4 – 6 GHz |
| Useable Frequency Range | 0.4 – 8 GHz |
| Connector | female 50 ? N |
| Mounting tube | 22 mm |

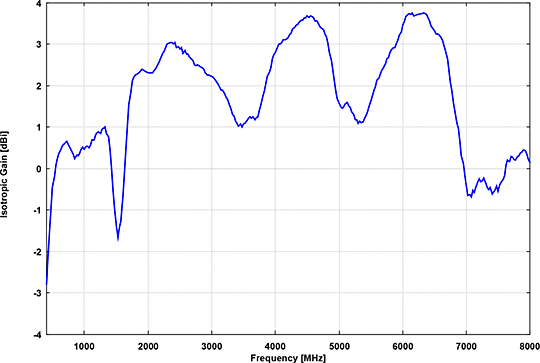

| Isotropic gain | typ. -3...+3 dBi |

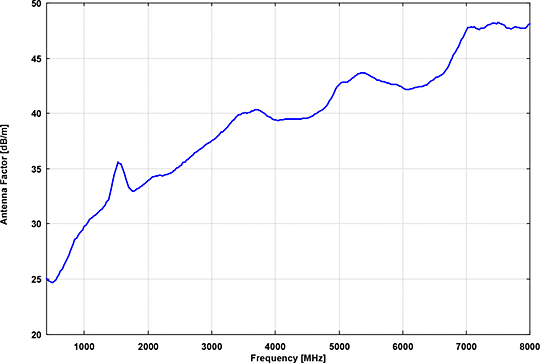

| Antenna Factor | 25 ... 44 dB/m |

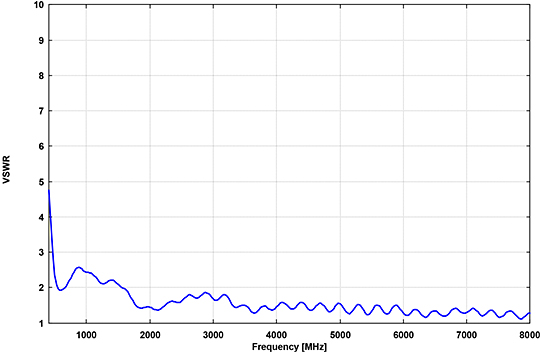

| SWR typ. | 1.5 |
| SWR max. | 3 (f>500 MHz) |
| Max. Input Power | 100 W |
| Half-Power Beamwidth (E-plane) | 80° - 50° |
| Pattern Deviation from Omnidirectional | typ. < +/- 1 dB |
| Weight | 2.6 kg |
| Dimensions | 185 x 185 x 370 mm |
