  Test AH Systems PAM-0207 Preamplifier, 20 MHz - 7 GHz

  SKU: sku-2353

  Weight: 1.1 lbs. / 0.5 kg

  Application/Test Type: Improve overall system sensitivity for field measurements.

  Connector: N(f) to N(f)

  Dimensions: 2.5" x 3.75" x 6.25" (63mm x 95mm x 158mm)

  Frequency Range: 20 MHz - 7 GHz

  Gain: 30 dB typical (25 dB minimum)

  Input: 100/220 VAC regulated P/S output: 12 VDC 170 mA

  Maximum Continuous Power: + 3 dBm @ 1 dB compression

  VSWR: 2.2:1 Input; 1.8:1 Output

  View Product Cart

•

  20 Hz - 18 GHz Radiated Test Antenna Kit

  SKU: 1999

  Frequency Range: 20 Hz (30 MHz) - 18 GHz (40 GHz)

  Applications: Military EMC Testing

  Test Standards: MIL-STD-461, FCC Part 15, TEMPEST, CISPR

  Typically In Stock

  View Product Cart

•

  BA330MEP Portable Emissions Biconical Antenna, 20 MHz - 330 MHz

  SKU: sku-1995

  Weight: 4.3 lb's (1.95 kg)

  Antenna Factor (1 Meter): 8.5 to 21.5 dB/m

  Connector: N-Type, female

  Dimensions: 29" x 52.5" (73.7cm x 134cm)

  Frequency Range: 20 MHz to 330 MHz

  Gain: -22 to 2.8 dBi

  Impedance: 50 ohm

  Max Radiated Field Strength: 2 V/m

  Maximum Continuous Power: 1 Watt

  Mounting Base: ABC-B (included)

  Standards Met: IEC 61000-4-3

  View Product View Product

•

  AH Systems SAS-521-4 Bilog Antenna, 25 MHz - 4 GHz

  SKU: sku-1920

  Impedance: 50 Ohm

  Weight: approx. 4.4 lbs (2 kg)

  Antenna Factor (1 Meter): 7 to 30 dB/m

  Antennas: Bilogical Antennas

  Application/Test Type: RF EMC immunity testing, Improved high frequency gain

  Connector: N type female

  Dimensions: 22.2 in. (56.4 cm) x 38.5 in (97.8 cm) x 39 in (99.1 cm)

  Frequency Range: 25 MHz - 2000 MHz

  Gain: -28 to 7 dBi

  Impedance-2: 50 Ohms

  Maximum Continuous Power: 1000 Watts

  Standards Met: IEC/EN 61000-4-3, CISPR 13, CISPR 14-1, CISPR 16-1-4, CISPR 16-2-3, CISPR 22, CISPR 24, CISPR 32, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, IEC 60533, IEC 60601-1-2, IEC 61326, ISO 11452-2,

  View Product Cart

•

  AH Systems BCP-619 100 Hz - 100 MHz Broadband RF Current Probe

  SKU: sku-1853

  View Product Cart

•

  AH Systems SAS-542 Biconical Antenna, 20 MHz - 330 MHz

  SKU: sku-1137

  Weight: 4.3 lb's (1.95 kg)

  Antenna Factor (1 Meter): 8.5 to 21.5 dB/m

  Connector: N-Type, female

  Dimensions: 29" x 52.5" (73.7cm x 134cm)

  Frequency Range: 20 MHz to 330 MHz

  Gain: -22 to 2.8 dBi

  Impedance: 50 ohm

  Max Radiated Field Strength: 2 V/m

  Maximum Continuous Power: 1 Watt

  Mounting Base: ABC-B (included)

  Standards Met: IEC 61000-4-3

  View Product View Product

•

  AH Systems SAS-510-2 290 MHz - 2 GHz Log Periodic Antenna

  SKU: sku-1135

  Weight: 1.4 lb.'s (0.64 kg)

  Antenna Factor (1 Meter): 14 to 32 db/m

  Antennas: Log Periodic Antennas

  Application/Test Type: FCC, MIL-STD, VDE and TEMPEST immunity and emissions compliance testing

  Connector: N-Type, female

  Dimensions: 22.6" x 20.1" (57.4cm x51.1cm)

  Frequency Range: 290 MHz - 2 GHz

  Gain: 6.5 dBi

  Impedance: 50 Ohms

  Max Radiated Field Strength: 200 V/m

  Maximum Continuous Power: 1000 Watts

  Mounting Base: ¼ - 20 Thread, female

  VSWR: 1.45:1 typ. (2.2:1 max)

  View Product View Product

•

  AH Systems FCC-4 High Frequency Tuned Dipole Antenna, 325 MHz to 1000 MHz, CISPR 16-1-5, 60 Watts

  SKU: sku-746

  Weight: 0.4 lbs

  Antennas: Dipole Antennas

  Application/Test Type: site attenuation measurements

  Connector: N-type (female)

  Dimensions: Length 9 in.

  Frequency Range: 325 MHz - 1000 MHz

  Gain: 0 to 2 dBi

  Impedance: 50 Ohms nominal

  Maximum Continuous Power: 60 Watts

  Mounting Base: One balun mounting clamp with 1/4-20 threads

  View Product Cart

•

  AH Systems FCC-3 Tuned Dipole Antenna, 170 MHz to 340 MHz, 90 Watts

  SKU: sku-745

  Weight: 0.5 lbs

  Antennas: Dipole Antennas

  Application/Test Type: site attenuation measurements

  Connector: N-type (female)

  Dimensions: Length 12.5 in.

  Frequency Range: 170 MHz - 340 MHz

  Gain: 1 to 2 dBi

  Impedance: 50 Ohms nominal

  Maximum Continuous Power: 90 Watts

  Mounting Base: One balun mounting clamp with 1/4-20 threads

  View Product Cart

•

  AH Systems FCC-2 Half-wave Dipole Antenna, 65 MHz to 180 MHz, 200 Watts

  SKU: sku-744

  Weight: 0.7 lbs

  Antennas: Dipole Antennas

  Application/Test Type: site attenuation measurements

  Connector: N-type (female)

  Dimensions: Length 21.7 in.

  Frequency Range: 65 MHz - 180 MHz

  Gain: 0 to 2 dBi

  Impedance: 50 Ohms nominal

  Maximum Continuous Power: 200 Watts

  Mounting Base: One balun mounting clamp with 1/4-20 threads

  View Product Cart

•

  AH Systems FCC-1 Tuned Dipole Antenna, 25 MHz – 70 MHz, 300 Watts

  SKU: sku-743

  Weight: 1.2 lbs

  Antennas: Dipole Antennas

  Application/Test Type: site attenuation measurements

  Connector: N-type (female)

  Dimensions: Length 23.7 in.

  Frequency Range: 25 MHz to 70 MHz

  Gain: -5 to 2 dBi

  Impedance: 50 Ohms nominal

  Maximum Continuous Power: 300 Watts

  Mounting Base: One balun mounting clamp with 1/4-20 threads

  View Product Cart

•

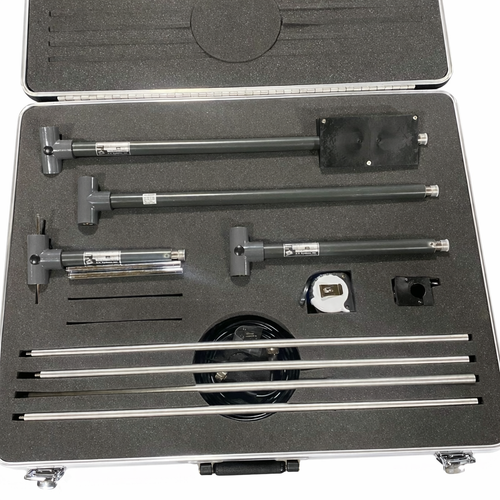

  AH Systems TDS-535 Tuned Dipole Set, 25 MHz to 1 GHz, Receive and Transmit

  SKU: sku-742

  Weight: 19 lbs.

  Antennas: Dipole Antennas

  Application/Test Type: precise EMI measurements

  Connector: N-type (female)

  Dimensions: Antenna Case: 28” x 23” x 7”

  Frequency Range: 25 MHz - 1 GHz

  Gain: Varies with Model

  Impedance: 50 ohm

  Maximum Continuous Power: Varies with Model

  VSWR: Varies with Model
