Schwarzbeck Mess-Elektronik

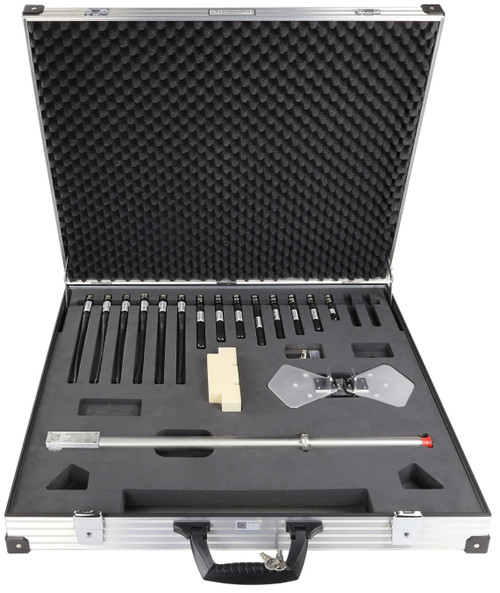

Schwarzbeck NMHA 6M Antenna Set

SKU: 202634-6
- Designed for automotive EMC immunity testing
- Supports Nissan NDS02 and Renault 36-00-808 standards
- Covers 26 MHz to 2700 MHz frequency range
- Includes tuned helical antennas and broadband flat element antenna
- Complete antenna set with counterpoise and accessories
Typically In Stock

VIEW PRODUCT Cart

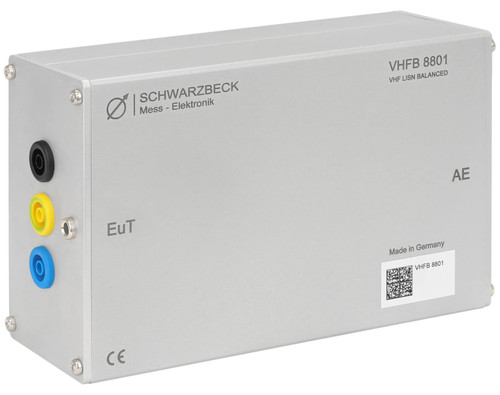

Schwarzbeck VHFB 8801 Balanced VHF-LISN

SKU: 202634-5
- 30 MHz – 300 MHz Frequency Range
- 50 Ω Balanced Impedance Network
- CISPR 16-1-4 Compliant
- Supports up to 16 A current
- Aluminum Laboratory Housing
Typically In Stock

VIEW PRODUCT Cart
Schwarzbeck NNBM DO-160 LISN (800 / 1500) Single Path Vehicle AMN

SKU: 202634-3
- Designed for EMC conducted emission measurements
- Frequency range: 9 kHz – 400 MHz
- Built according to DO-160 and DEF-STAN-59 standards
- Stable impedance network: 5 µH || 50 Ω
- Suitable for automotive, aerospace, and EMC laboratory testing
Typically In Stock

VIEW PRODUCT Cart
Schwarzbeck LFPA 9733 C Power Amplifier

SKU: 202634-4

Frequency Range: 5 Hz – 1 MHz

Gain (without load): 26 dB ±3 dB

AC Output current (50% duty cycle up to 5 min.): 28 Arms

AC Continuous operating current: 14 Arms

Impedance of load min.: 0.25 Ω

Typically In Stock

VIEW PRODUCT Cart
Schwarzbeck SBB 1840 Omnidirectional Biconical Broadband Antenna

SKU: 202634-2

Frequency Range: 10 – 40 GHz

Useable Frequency Range: 6 – 43.5 GHz

Nominal Impedance: 50 Ohm

Gain: typ. -4 … 0 dBi

Antenna Factor: typ. 53 … 63 dB/m

Typically In Stock

VIEW PRODUCT Cart
Schwarzbeck SBB 0110 Microwave Biconical Antenna

SKU: 202634-1

Frequency Range: 1 – 10 GHz

Useable Frequency Range: 1 – 14 GHz

Nominal Impedance: 50 Ohm

Gain: typ. -1 dBi +/- 1.5 dB

Antenna Factor: typ. 40-52 dB/m

Typically In Stock

VIEW PRODUCT Cart

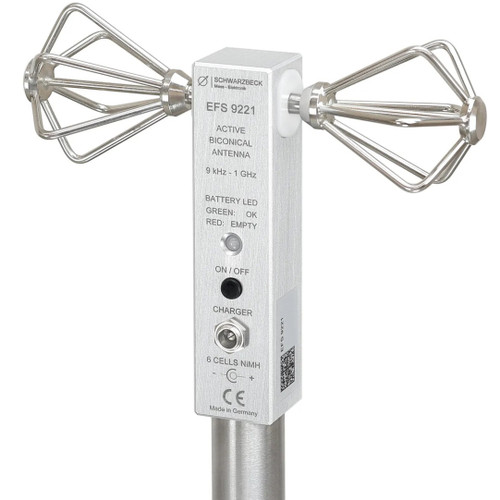

Schwarzbeck EFS 9221 Active Biconical Broadband Antenna

SKU: 202634

Frequency Range: 9 kHz – 1 GHz

Nominal Impedance: 50 Ω

Antenna Factor: typ. 27-37 dB/m

Deviation from Omnidirectional Pattern: typ. < 1.5 dB

Frequency Flatness: typ. < +/- 1.5 dB (50 kHz -1000 MHz)

Typically In Stock

VIEW PRODUCT Cart
Schwarzbeck VHA 9103 Antenna Balun for EM Measurements

SKU: 284852

Applications: Radiated Emissions Testing

Frequency Range: 30 MHz to 300 MHz

Maximum Continuous Power: 250 mW

VSWR: 2.0:1

Typically In Stock

VIEW PRODUCT Cart
Schwarzbeck MDS 21 CISPR 16 Absorbing Clamp

SKU: 11781

Max Cable Diameter: 20mm

Max Current Handling: 30 Amps

Max RF Power Handling: 5 Watts

Frequency Range: 30 MHz - 1 GHz

Test Standards: CISPR 16

Cost New:

Was:

Price Now:

$4,500.00

In Stock

ORDERING OPTIONS
Schwarzbeck CVP 9222 C Capacitive Voltage Probe

SKU: 7403

Frequency Range: 9 kHz - 100 MHz

Insertion Loss: 34 dB

Max Peak Voltage: 30 Volts

Standards Met: CISPR 16, CISPR 22, CISPR 32, ANSI C63.4

Clamp Diameter: 32 mm

Cost New:

Was:

Price Now:

$395.00

Typically In S

ORDERING OPTIONS
Schwarzbeck AM 9144 Configurable Antenna Mast

SKU: 102023

Overall height adjustmeint: 0.53 m - 3 m

Antenna or adapter mount: 3/8" (male)

Diameter of circle around foot: aprrox. 1.5 m

Material mast: GFK / fibre glass

VIEW PRODUCT Cart
Schwarzbeck STLP 9128 E Special - Stacked Log Periodic Antenna

SKU: 11832

Nominal frequency range: 80-1700 MHz

Usable frequency range: 80-2700 MHz

Max. input power (N-connector): 1 kW (const.) 1.5 kW (intermitt.)

Max. input power (7/16- Connector): 2 kW (const.) 3 kW (intermitt.)

Applications: Radiated Immunity Testing

Inquire for Availability

VIEW PRODUCT Cart
