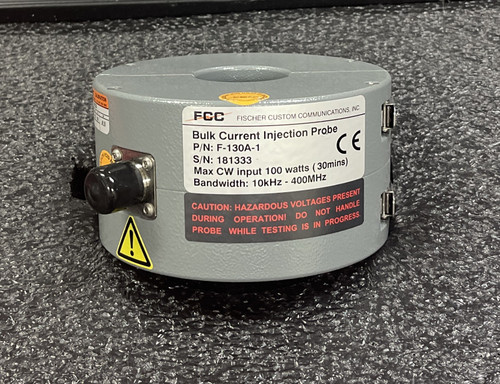

Fischer/FCC F-130A-1 Bulk Current Injection Probe

Fischer/FCC F-130A-1 Bulk Current Injection Probe

Condition:
Used
Manufacturer:
FCC
Max RF Input:
100 Watts
Dimensions:
Inner diameter: 40 mm Outer diameter: 127 mm Height: 70 mm
Frequency Range:
10 kHz - 400 MHz
Insertion loss:
less than 7dB/3MHz - 350MHz
Related Normative References:
ISO 11452-4, DO-160 Section 20, MIL-STD-461 CS114



No reviews yet Write a Review
$695.00
Availability:

Typically in Stock

SKU:
11662-PR



Due to tariff increases, some items in our catalog are subject to additional costs when purchased.

Getting Started...

Overview

The Fischer/FCC F-130A-1 is used for BCI testing in accordance with automotive specifications like SAE J15447 as well as diagnostic bulk current testing up to 400 MHz. The CW input power rating is 100 watts for 30 minutes.

Key Considerations

Manufacturer:
FCC
Max RF Input:
100 Watts
Dimensions:
Inner diameter: 40 mm Outer diameter: 127 mm Height: 70 mm
Frequency Range:
10 kHz - 400 MHz

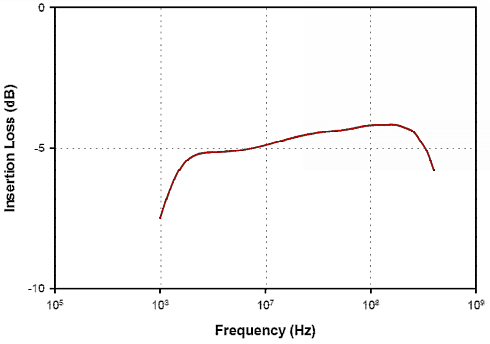

Insertion loss:
less than 7dB/3MHz - 350MHz
Related Normative References:
ISO 11452-4, DO-160 Section 20, MIL-STD-461 CS114
