RF Test Equipment Categories
RF Test Equipment
SKU: 8305
Calibrated noise source for accurate RF noise figure measurements
Wide frequency coverage from 10 MHz to 18 GHz
Nominal 15 dB Excess Noise Ratio (ENR) for reliable measurement reference
Designed for use with Keysight noise figure measurement systems
Compact SNS Series design suitable for laboratory and production test setups
SKU: 10802
Wide 10 Hz to 30 GHz Frequency Coverage
Up To 200 MHz Real-Time Analysis Bandwidth
High Dynamic Range And Low Noise Performance
Advanced RF Signal And Spectrum Analysis
Ideal For EMC Testing, Wireless R&D, And RF System Verification
SKU: 10775
Wide DC To 50 GHz Frequency Coverage
60 dB Precision Attenuation Capability
Designed For RF And Microwave Signal Level Control
Ideal For RF Test Systems, Calibration, and Signal Conditioning
Compact Form Factor For Laboratory and Integration Use
SKU: 10911

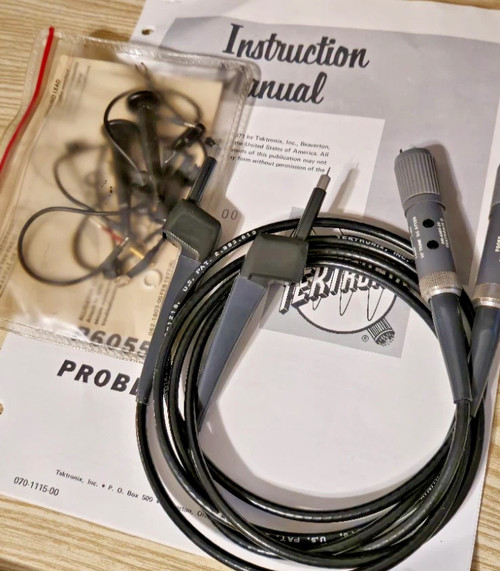

Tektronix P6055 10X Differential Oscilloscope Probes
1 MΩ Input Resistance, ~10 pF Capacitance
HF Termination and DC Attenuation Controls
Designed for Differential Signal Measurements
Includes 2 Probes with Adapter Kit and Accessories
SKU: 10912

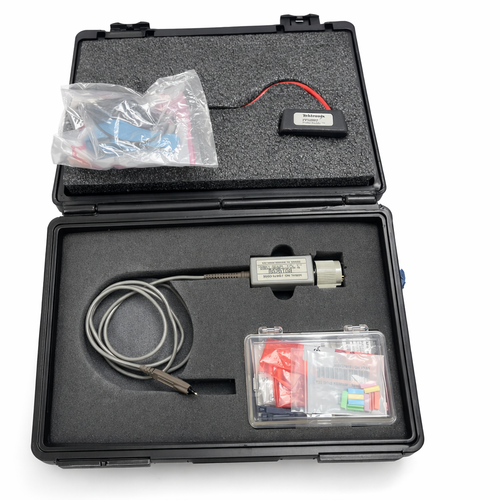

4 GHz High-Bandwidth Active Probe
High-Speed Signal Measurement
Compact Probe Head For SMD Access
SKU: 10997
9 kHz to 20 GHz Frequency Range
Portable Handheld Spectrum Analyzer
Lightweight Design (Approx. 3 kg with Battery)
Battery Powered for Field Measurements
High Sensitivity RF Signal Detection
SKU: 11007
100 kHz To 3 / 6 GHz Frequency Range
Fast Signal Switching With <2 ms Setting Time
Wide Output Level Range Up To +19 dBm With High-Power Option
Low Phase Noise For High-Precision RF Testing
Wide I/Q Bandwidth Up To 200 MHz
SKU: 251211-2
0.1 Hz – 6 GHz Vector Network Analyzer (0.001 Hz – 500 MHz Bode Analyzer Option)
Signal generator 0.1 Hz – 6 GHz with 0.1 Hz resolution
Four channel 60 MHz digital oscilloscope with 125 MS/s and 14 bit resolution. (Two 50 Ω inputs, two 1 MΩ inputs
Two-Channel DC – 6 GHz spectrum analyzer, with an unambiguous frequency range of DC – 60 MHz and an active sideband suppression for spurious-free signal measurements up to 6 GHz (under certain conditions) and cross correlation option.
Power sweep measurements, Wideband Power/Voltage measurements, THD analyzer, Phase noise analyzer
SKU: 2511212
Wide dynamic range for various applications: ±15V differential, ±30V common mode
High input resistance and low input capacitance for low probe loading: 200kΩ/1pF between inputs
Compatible with any 50 BNC input, powered by a 9V battery or USB cable (included)
SKU: 2511211
Universal AC input power supply
100VAC - 240VAC 50/60Hz AC input
Use the three 12-V outputs to connect up to three N2780-83A/B current probes
SKU: ANR-MS276X
Measure: Channel Power, Adjacent Channel Power, Occupied Bandwidth
Spectrum and Spectrogram Displays
Resolution Bandwidth (RBW): 1 Hz to 3 MHz
Up to Six Spectrum Traces and Spectrogram Cursors, Three Trace Detectors, 12 Marker
Phase Noise: –116 dBc/Hz @ 1 GHz, typical (MS2760A)
SKU: 15292
Bandwidth:
75 MHz
Input Capacitance:
3 pF
Input Resistance:
100 MΩ
Cable Length:
10 ft
Attenuation:
1000X
